Altivar Machine ATV340, innovative variable speed drives for high-performance machines
The Altivar Machine ATV340 (From 1 HP to 100 HP in heavy duty with 3-phase supply voltage from 380 to 480 V) drive is robust for high overloads, offering safety, various communication protocols, and cutting-edge motor control solution for machine builders. Traditional machine design is challenged by the smart manufacturing approach. Changing times require innovative features such as the native Ethernet based – Fast Device Replacement. It gives machine operators a seamless service approach. The embedded encoder is compatible with asynchronous and synchronous motors in closed-loop control applications and the load-sharing master/slave configuration makes ATV340 a SMART manufacturing success.
High performance in material handling, material working and hoisting
The ATV340 improves the capabilities and availability of high-performance machines while reducing build costs thanks to:
- Superior machine performance
With a maximum torque availability of 1.8 In and optimised speed bandwidth of up to 400Hz, the ATV340 is ideal for dynamic applications with rapid acceleration. Its frequency inverters can handle high overloads in demanding applications up to 220% nominal torque.
- Faster reaction time
A combination of fast application reaction time with a minimum 1ms task cycle and Ethernet connectivity maximises your machine’s throughput.
- Simplified machine engineering

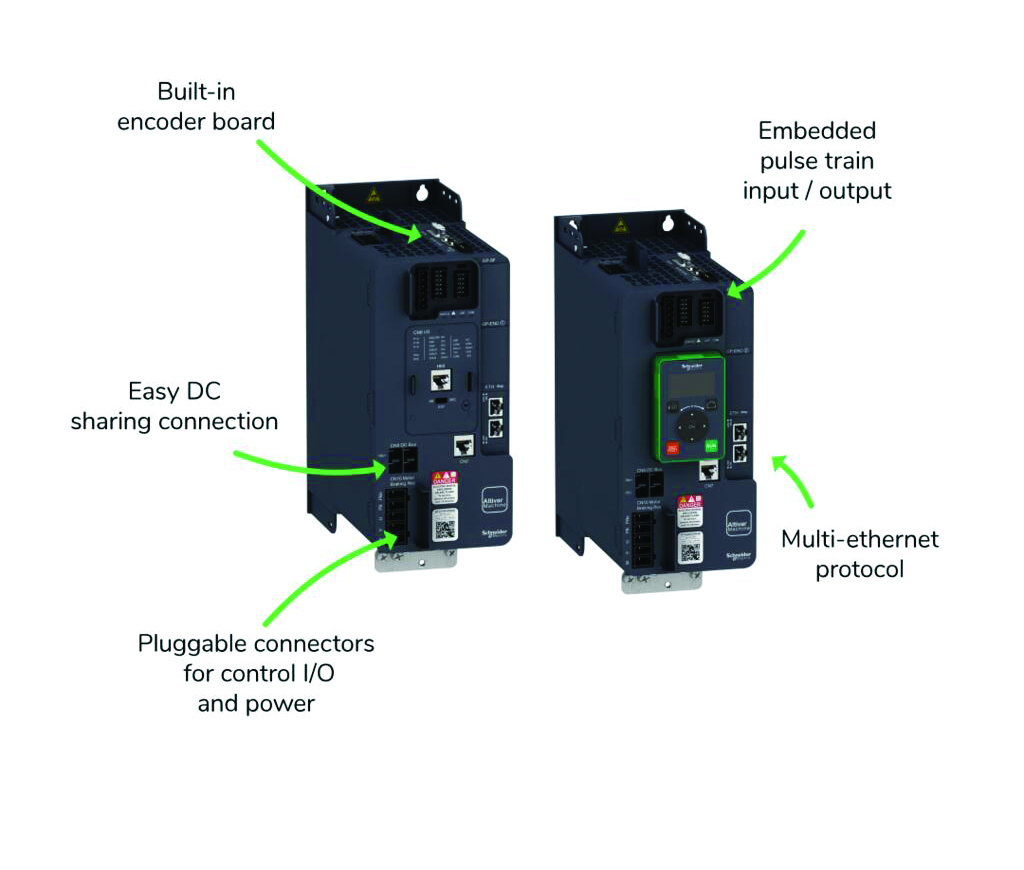

Built-in multiprotocol (Ethernet, Modbus, SERCOS) a variety of interfaces, an embedded encoder and integrated application functions offer maximum flexibility in design. Remote monitoring via the embedded web server enables predictive maintenance. EcoStruxure Machine & FDR allow faulty device replacement service with short time machine recovery.
- Reduced design time
Complete project replication is possible with on-button auto-tuning for motor indentification and supports efficient machine commissioning and production. Additionally, ready-to-use Tested, Validated, and Documented Architectures (TDVAs) and SoMachine software facilitate seamless automation integration.
- Comprehensive functional safety and cyber security
With embedded STO (SIL3) and a full range of safety functions (SS1, SLS, SMS, SBC, GDL), the ATV340 is compliant with machine related safety standards EN ISO 13849-1 and EN 62061. The ATV340 also has Achilles level 2 cyber-security certification to protect people and assets while ensuring continuity of service.
- Robust
In harsh environments with high levels of dust and vibration and operating temperature up to 60ºC. Due to high IGBT and thermal dissipation efficiency, it allows additional 40% of rates current taking motor power to 130kW under normal duty operation.
